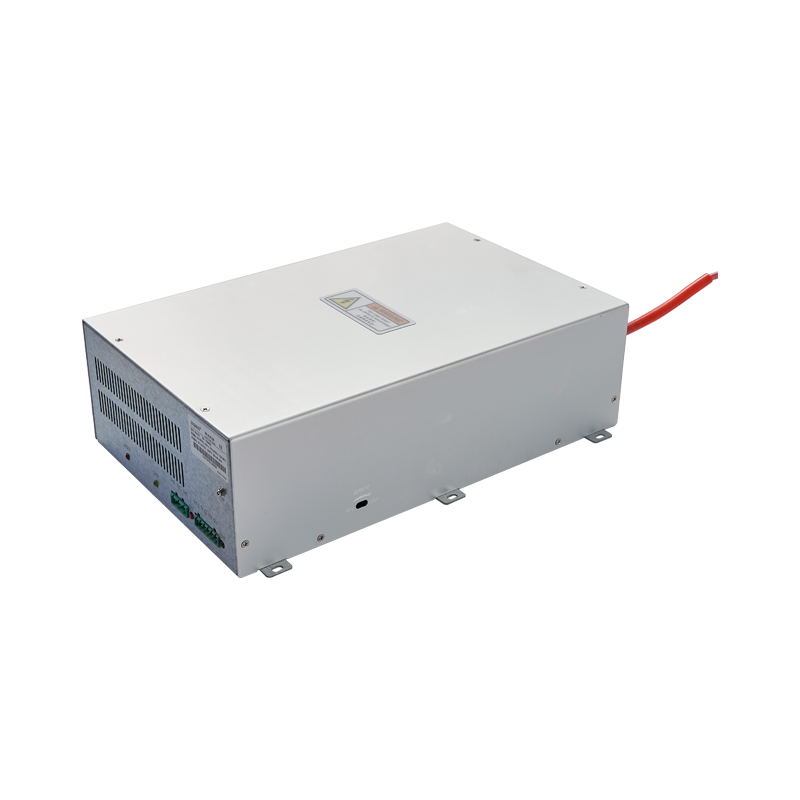

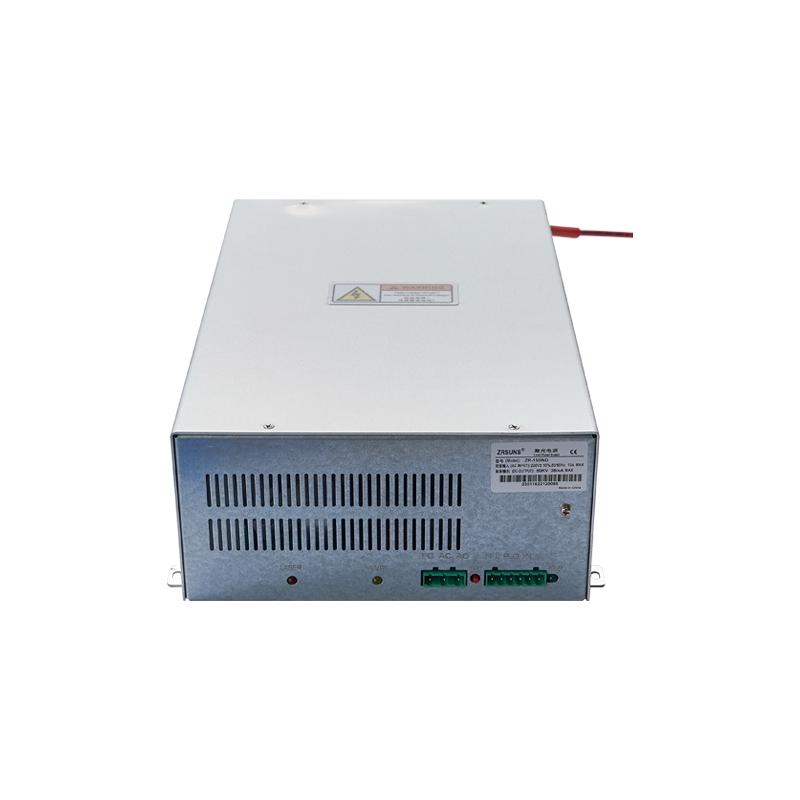

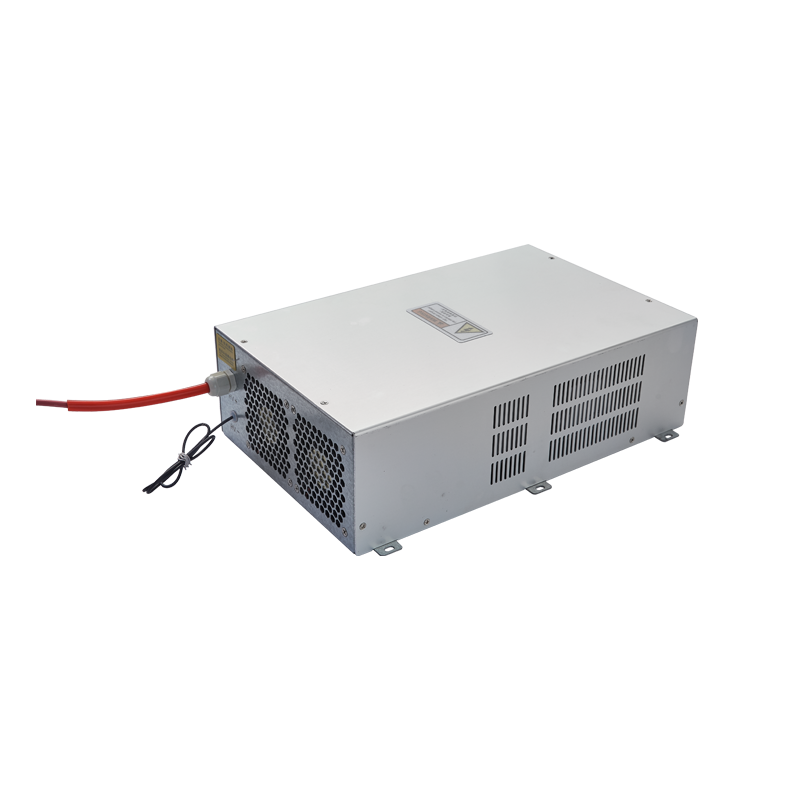

CO₂ laser power supply

描述

As an efficient power source for CO.laser tubes. It has the characteristics of a small size. Lightweight, easy operation, and good matching, and can be directly connected with the laser tube. The power supply can make the laser tube easier to turn on, with a low conversion rate and long service life.

TECHNICAL PARAMETER TABLE

Item	FJ-60W	FJ-80WE	FJ-100W	FJ-120W	FJ-130W	FJ-150W	FJ-200W
Input voltage	AC220V±10%	AC220V±10%	AC220V±10%	AC220V±10%	AC220V±10%	AC220V±10%	AC220V±10%
AC frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Max input power	490 W	750 W	770 W	820 W	970 W	1000 W	1300 W
Max input current	2.2 A	3.4 A	3.5 A	3.7 A	4.3 A	4.5 A	5.9 A
Max output voltage	DC 25 kV	DC 32 kV	DC 35 kV	DC 35 kV	DC 40 kV	DC 40 kV	DC 52 kV
Max output current	DC 28 mA	DC 33 mA	DC 33 mA	DC 35 mA	DC 36 mA	DC 40 mA	DC 36 mA
Dimensions (L×W×H, mm)	210×145×100	285×175×105	300×200×110	335×205×100	335×205×100	350×222×105	390×240×116
Cover color	Silvery Grey	Silvery Grey	Silvery Grey	Silvery Grey	Silvery Grey	Silvery Grey	Silvery Grey

AC110V input can be customized on request.

Common Specifications (apply to all models)

Item	Value
Efficiency	≥ 90% (at full load)
Response speed	≤ 1 ms
MTBF	≥ 1000 hours
Control interface	TTL level switch control; effective level selectable high or low
Insulation & voltage	Input–output, input–housing: AC1500V, 10 mA, 60 s; output negative terminal connected to the housing
Open-circuit protection	Short-time open circuit (requires good grounding of the power-supply housing; avoid arcing between the positive electrode and the housing)
Working temperature	−10 °C to 50 °C
Storage temperature	−20 °C to 75 °C
Relative humidity	Up to 85% RH (non-condensing)
Altitude	100,000 ft working; 200,000 ft storage (no operation)
Cooling method	Forced air cooling
